PTFE Teflon Washers

What are Teflon Washers?

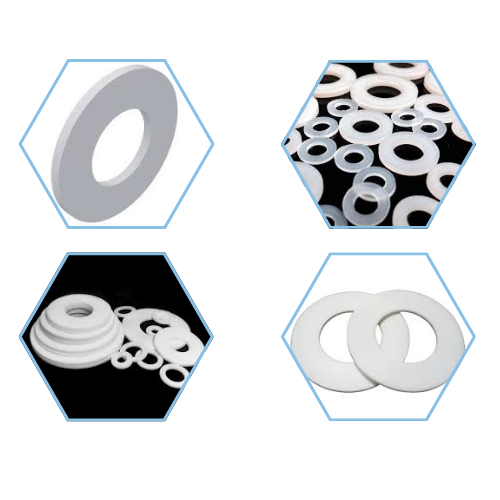

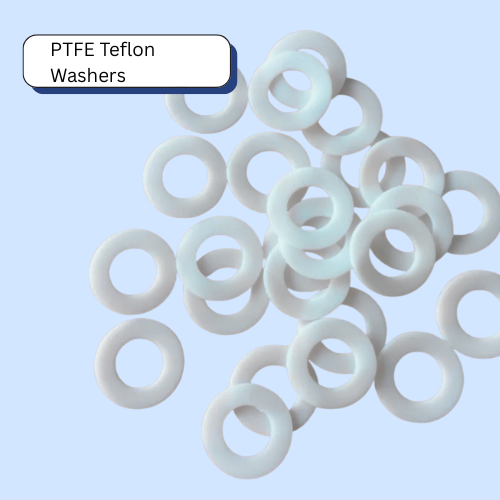

PTFE washers, also called Teflon washers, are round discs made from polytetrafluoroethylene, a strong plastic valued for its smooth, non-stick surface and high resistance to chemicals. These washers are built for harsh conditions and perform well in both extreme heat and cold. When placed between two surfaces, they help lower friction, close small gaps, and stop leaks. They are widely used in aerospace, automotive, and chemical industries.

PTFE washers also act as insulators in electrical equipment. Available in various sizes, they can be customized to suit specific needs, making them ideal for heavy-duty and precision applications across many industries.

Features

The features listed below highlight why PTFE washers are the preferred option for many industrial uses.

• Chemical resistance: Teflon washers can handle harsh chemicals such as acids and alkalis without breaking down. This makes them ideal for use in chemical plants, laboratories, and industrial equipment.

• Low friction: The surface of Teflon is naturally slippery, which reduces friction between moving parts. This helps prevent wear and improves machine efficiency.

• FDA-approved options: Some Teflon washers meet FDA food-grade standards, meaning they’re safe to use in food processing, medical, and pharmaceutical applications.

• Corrosion resistance: Teflon does not rust or corrode, even when exposed to moisture, chemicals, or harsh conditions.

• Low moisture absorption: It barely absorbs water, ensuring stable performance in humid or wet conditions. This also prevents expansion or weakening over time.

• Excellent dielectric strength: Teflon acts as an excellent electrical insulator, allowing it to be used safely in electrical and electronic components.

• Non-contaminating and odourless: It doesn’t react with substances or give off odours, keeping nearby materials clean and uncontaminated.

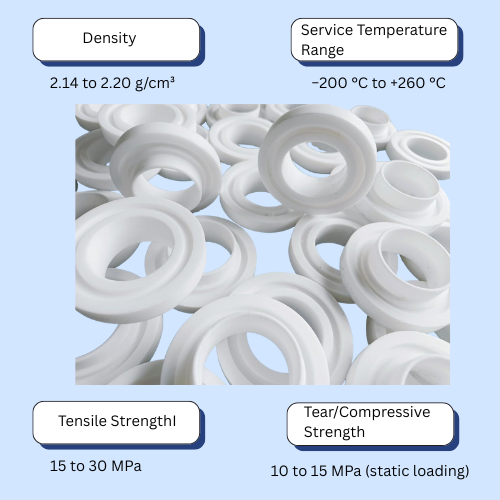

• Wide temperature range: Teflon washers work effectively in extreme cold and high heat from cryogenic levels up to +260°C  without losing their properties.

Applications

Teflon washers are commonly used in pneumatic seals, fast-moving machines, hydraulic cylinders, and compressors. They work well in systems with rotating or sliding motion and are widely used in petrochemical setups, food processing units, aerospace parts, and oil and gas equipment. Choosing the right PTFE/Teflon gasket, seal, or washer for each application is essential to ensure reliable performance and material compatibility.

How to Use?

Follow these simple steps to get the best performance from PTFE washers.

1. Pick the right size Teflon washer that matches your bolt or fastener’s inner and outer diameter and thickness.
2. Clean bolt, nut, and mating parts to remove dirt, oil, or debris, then dry them well.
3. Slide the washer onto the bolt shank and position it under the bolt head, nut, or between parts to spread the load evenly.
4. Insert the bolt through the hole or assembly, hand-tighten the nut first, then use tools to secure it without over-tightening to avoid crushing the washer.
5. Inspect the fit to ensure the washer sits flat with no gaps, twists, or leaks in sealed systems.​

Safety Guidelines

Always follow these safety tips to handle and work safely with PTFE washers.

• Wear gloves and eye protection when handling PTFE materials. Teflon washers to avoid cuts or debris.
• Work in a well-ventilated space to avoid breathing in dust created while cutting or machining PTFE.
• Keep PTFE away from open flames or temperatures above 260 °C, as overheating can release harmful fumes.
• Do not tighten fasteners too much, as this can damage the washer or cause it to fail under load.
• Check washers for cracks or wear before reusing them, and safely discard any damaged ones.
