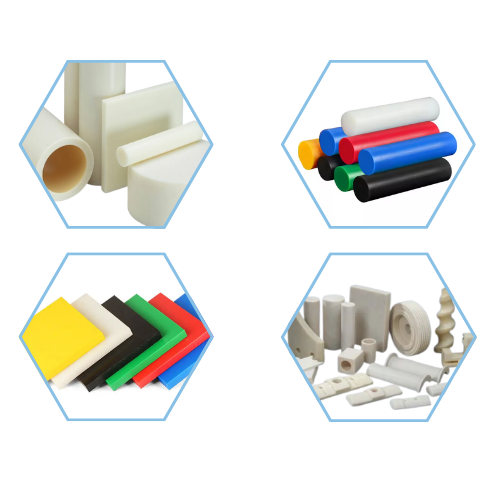

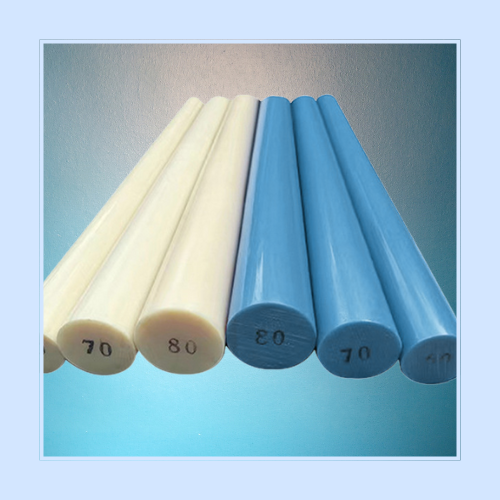

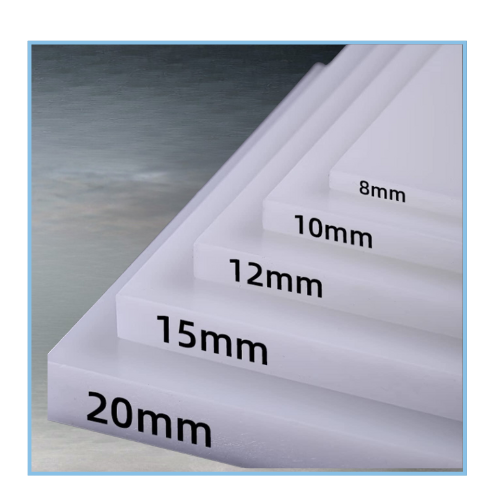

Nylon Sheets and Tubes

What is Nylon

Nylon Sheets and Rods UAE | Wear-Resistant Engineering Plastic Dubai Supplier – Nylon 6/6 and Nylon 6 sheets/rods deliver exceptional mechanical strength, low friction, and dimensional stability for UAE’s precision engineering, automotive manufacturing, conveyor systems, and material handling equipment.

Glass-filled (30% GF) and oil-filled grades provide superior load capacity and self-lubrication, while Shore R110-120 hardness ensures long wear life in Jebel Ali factories and Sharjah production lines.

Features

Nylon sheets and Rods offer excellent mechanical strength, durability, and versatility, making them a perfect choice for industrial, engineering, and commercial applications.

1. Glass-filled strength – 120 MPa tensile vs 80 MPa standard nylon.
2. Self-lubricating grades – Oil-filled reduce the coefficient to 0.15.
3. No-break toughness – Survives drop tests to 2m concrete.
4. Precision machinable – ±0.05mm tolerances on CNC mills.
5. Low creep – <1% deformation under 10MPa constant load.
6. Electrical insulation – 10¹² ohm-cm volume resistivity.
7. Dubai stock machining – 48hr custom parts from inventory.

Applications

Jebel Ali CNC job shops turn Nylon 6/6 rod into multi-start lead screws, timing belt idlers, and spindle thrust collars – parts obsolete within 6 months now last 3 years. Sharjah packaging OEMs slice 3mm nylon stripper fingers and format-change fixtures that survive 500,000 cycles without fracture.

Dubai plastic extruders mount 20mm glass-filled nylon feed blocks and calibrator rings, eliminating galling on soft tooling steels. Ras Al Khaimah textile winders spin-cast nylon tension arms and traverse cams, reducing inertia by 85% compared with brass prototypes. Abu Dhabi automation integrators deploy oil-filled star wheels in cleanroom packaging – zero contamination, zero lubrication.

How to Use Nylon Sheets and Rods?

Here are a few steps to follow when using Nylon sheets and Rods:

• Grade selection: GF for rigidity, oil-filled for bearings, cast for large parts.
• Machining speeds: 300m/min HSS, 800m/min carbide endmills.
• Coolant: Compressed air only – water swells nylon 2.5%.
• Tolerances: +0.1/-0.0mm stock, ±0.02mm finished parts.
• Threading: 80% engagement, 6H/6g class maximum.

Safety Guidelines

Nylon processing requires precise environmental controls to prevent material degradation and ensure worker safety:

1. 1. Wear safety gloves to protect your hands from sharp edges when cutting or handling nylon sheets and rods.
   2. Use safety glasses to shield eyes from chips during machining.
   3. Clean surfaces before use to remove dust and grease.
   4. Avoid bending nylon beyond recommended limits to prevent cracking.
   5. Operate within -40°C to +100°C temperature range to avoid warping.
   6. Keep nylon away from strong acids and solvents.
   7. Check regularly for wear, discoloration, or cracks and replace when needed.
   8. Store in a cool, dry, covered area away from UV and moisture.
